STORZ DUOLITH SD1 T-TOP ULTRA

MEDIUM / LARGE CLINICS & ADDITIONAL TREATMENT OPTIONS

Focused shockwave therapy (ESWT) for non-invasive treatment of orthopaedic disorders, deep seated tendons,. bones stress injuries, tendinopathies, men’s health, wound healing, myofascial pain syndromes and more.

Higher energy, accurate and deeper energy delivery
With the DUOLITH® SD1 Storz has created the new standard for focused shockwave (FSW) therapy. Able to address deep-lying problems that radial shockwave is less effective in treating. Focused shockwave is providing clinics with an invaluable addition in their efforts to reach deeper trigger points in patients. An ergonomic design means less operator fatigue in tandem with less discomfort during application.

storz t-top ultra product

System at a Glance

  • Dimensions without touch screen: 466 x 187 x 454 mm
  • Weight: 24 kg

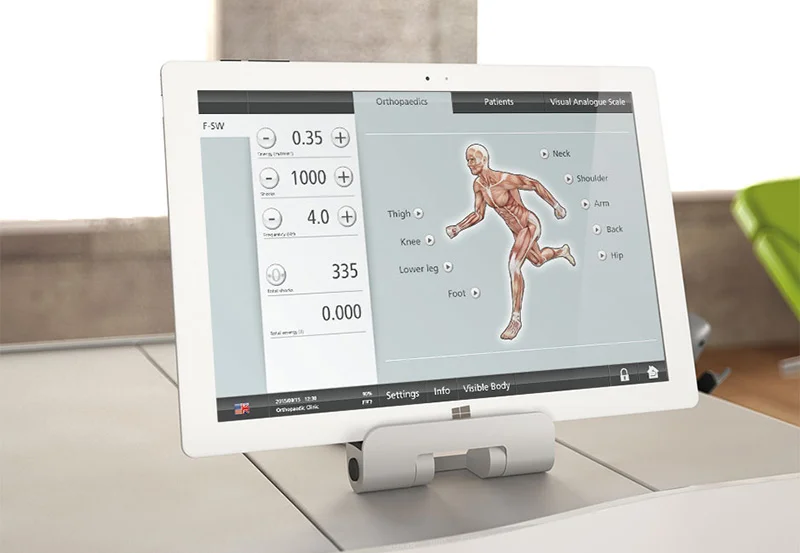

  • 10” touch screen (optional)
  • »SEPIA« handpiece: 0.03 – 1.24 mJ/mm²

Focused Healing

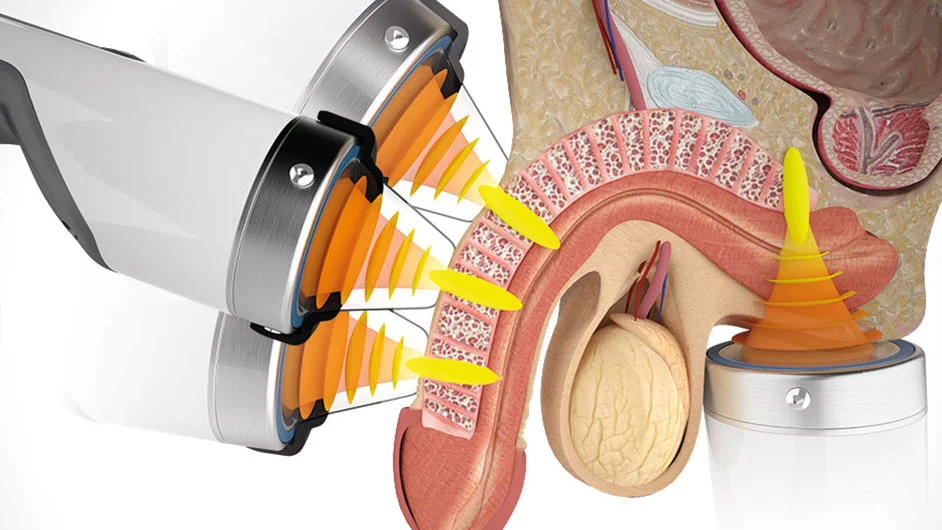

The accuracy of focused energy means that Focused Shockwave therapy can treat problems while limiting the damage and/or pain on the skin and to underlying soft tissues. The Duolith SD1 is effective for sports injuries, urology / men’s sexual health including erectile dysfunction, pelvic pain and Peyronies disease, wound healing such as diabetic foot ulcers, bone healing / non -unions and management against pain management.

Sepia Handpiece

The new Sepia handpiece, it is already a firm favourite with many Venn customers, all controls are featured directly on the handpiece for easy control and speedy and effective treatments. The easy replacement of the cylindrical coil is another advantage for the user, saving revision time and cost.

The Sepia handpiece comes with ‘stand-offs’ which are used to adjust the penetration depth according to the condition..

The hand piece is ergonomically designed and the cable is very flexible, allowing for easier and non-tiring treatment – an important consideration in a busy clinic. An optional extended energy range handpiece is also available for use in dermatology applications such as wound healing, diabetic foot ulcers and pseudoarthrosis treatments.

storz t-top ultra shockwave handpiece

Key Features

  • All controls integrated into the handpiece
  • Reduced service costs thanks to simple coil replacement
  • Optional: C-ACTOR® handpiece with extended energy range
  • Treatments without medication or surgery
  • Short treatment sessions
  • No side-effects
  • No anaesthesia required
  • Treatments can be easily repeated
  • Effective and non-tiring treatment for patients
  • Weighs 24kg
  • Focal zone depth up to 65mm
  • Up to 125mm penetration
  • 10” touchscreen (optional)
  • Upgradable to Duolith SD1 Tower by modular extensions
shockwave therapy machine

Focused shockwaves offer a smaller focal point than radial shockwave products and can precisely target specific areas of the body
